A simple and intuitive method
ALKA Pro-Clean is a mechanical system for internal pipe cleaning that works by shooting inside them a special projectile driven by a jet of compressed air. This system can be used for pipes with internal diameter starting from 1mm up to a few hundred, for lengths of 10, 100 or even 1000m and can be used in the presence of bends at 90°, “T” or "Y" branches or ball valves.
3. Shot
1. Nozzle selection
2. Projectile choice

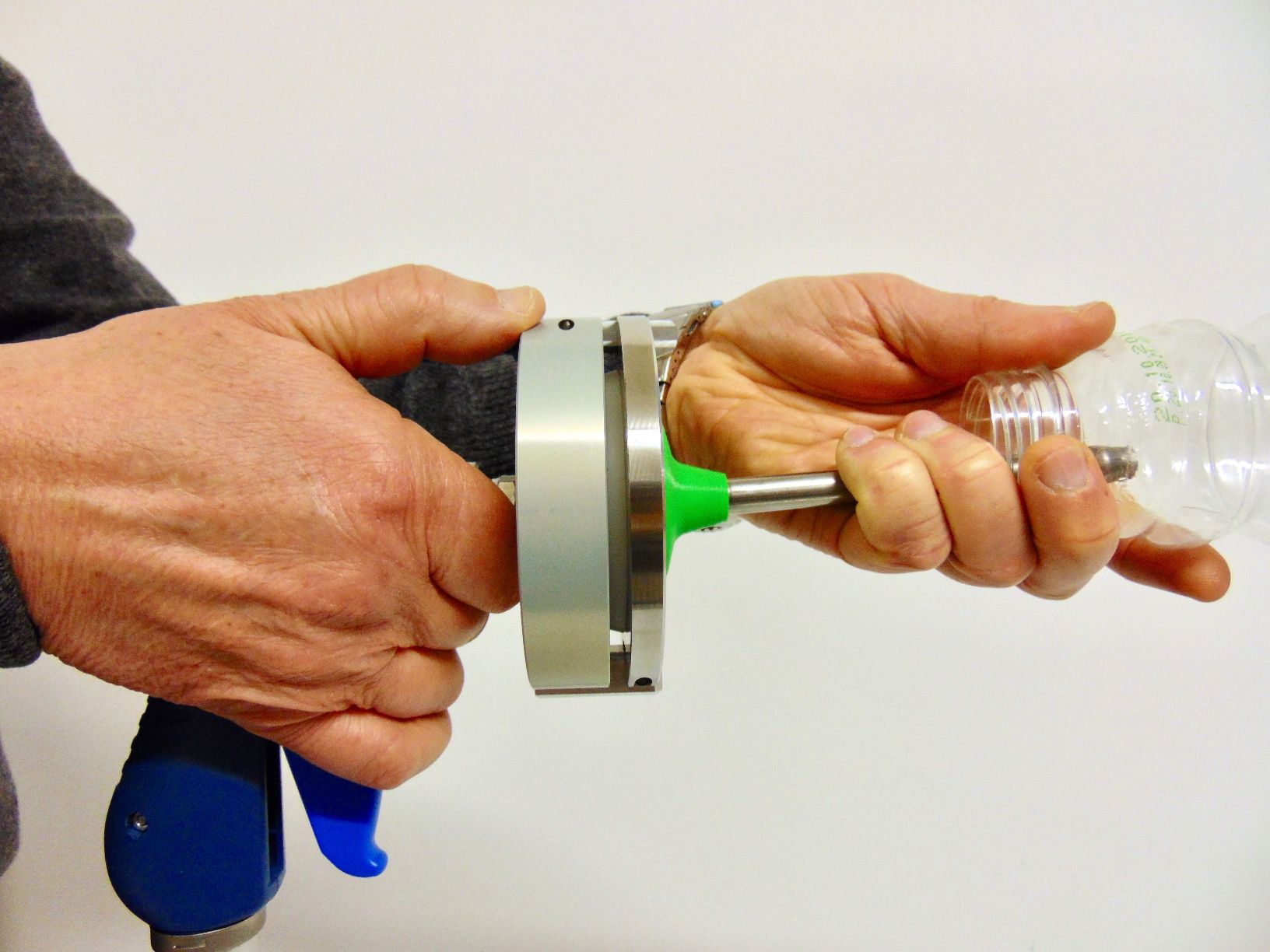

Press the nozzle against the end of the tube. Pull the trigger and keep it pressed until the projectile exits the other end of the tube, where it will be collected in a suitable container.

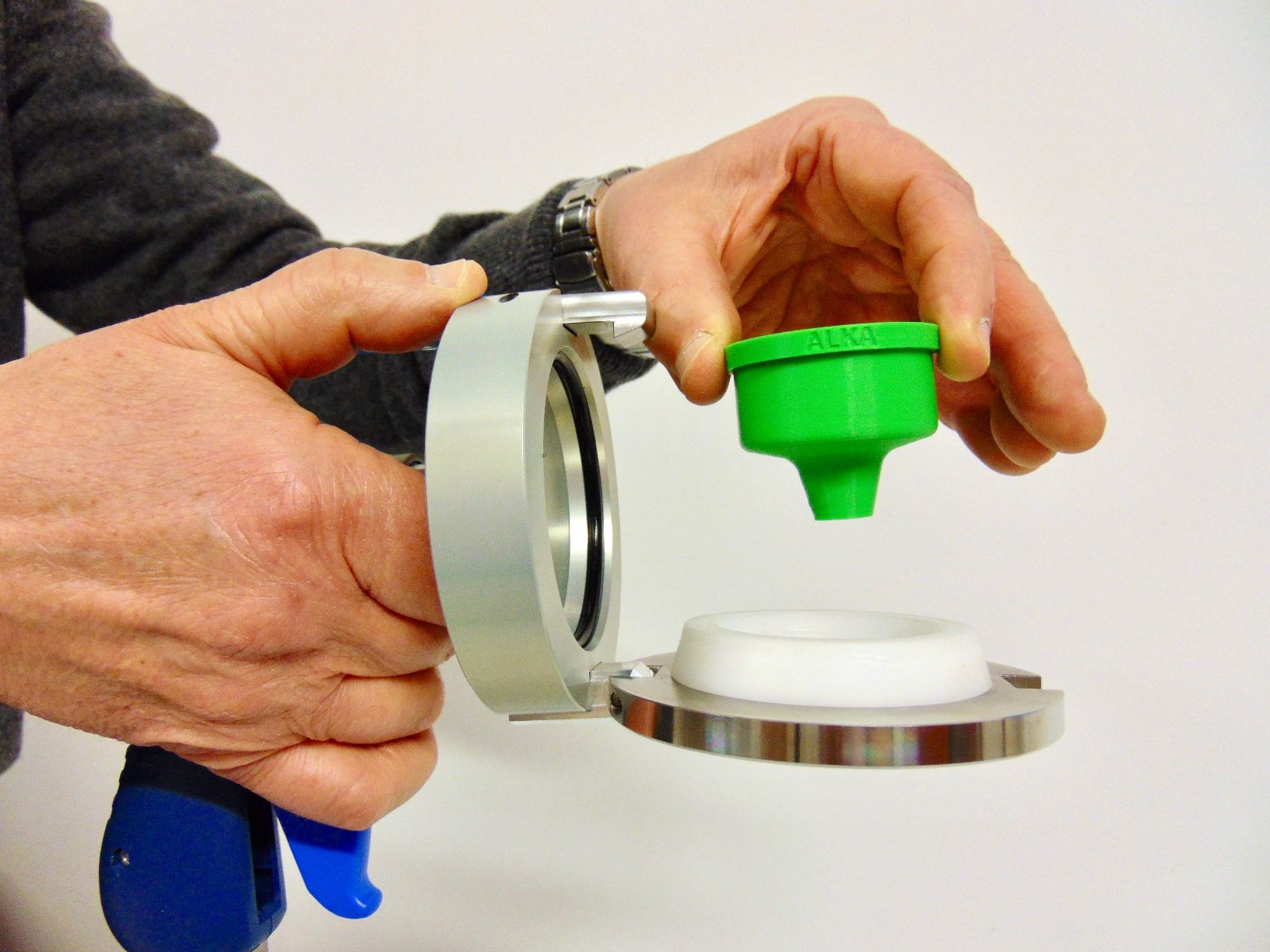

After connecting the launcher to a compressed air source, open the front ring and select the nozzle according to the diameter of the pipe to be cleaned. Insert the nozzle into the housing.

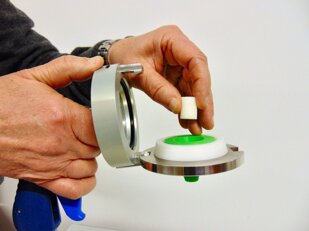

Now select the proper projectile based on the tube diameter and the type of cleaning to be carried out. Insert the projectile inside the nozzle and close the front ring.
Example of a typical cleaning carried out on a steel pipe to remove machining residues

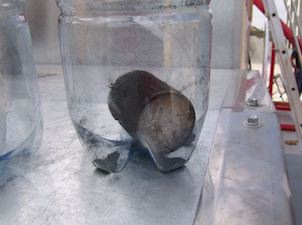

Shot projectile
Before
After
